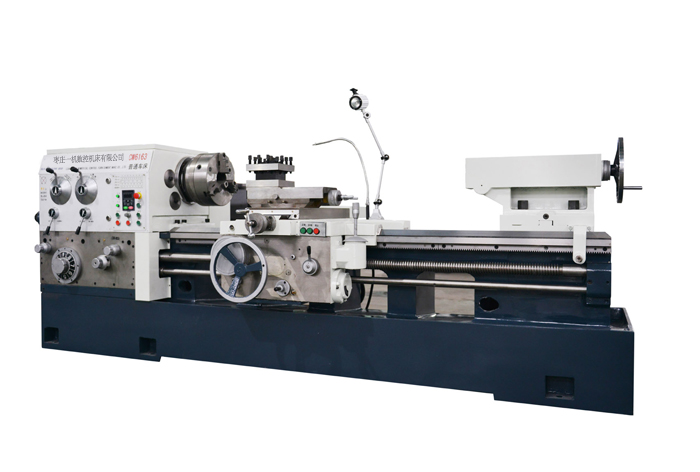

CW系列普通车床

型号 Model CA6140 CA6140B CA6240 CA6240B CA6150 CA6150B CA6250 CA6250B CA6161 CA6161B CA6261 CA6261B CA6166 CA6166B CA6266 CA6266B CA6180 CA6180B CA6280 CA6280B
床身上大工件直径
Max. Swing over bed
400mm 500mm 610mm 610mm 610mm
刀架上大工件直径
Max. Swing over carriage
210mm 300mm 370mm 400mm 540mm
马鞍槽大工件直径
Max. Swing in gap
- 630mm - 720mm - 830mm - 880mm - 1020mm
马鞍槽有效长度
Effective gap length
- 210mm - 210mm - 210mm - 210mm - 210mm
大工件长度
Max. Length of  workpiece
750mm1000mm1500mm2000mm3000mm
床身宽度 Width of bed 400mm
刀杆截面 Section of turning tool 25X25mm
主轴 Spindle 主轴转速范围
Spindle speeds
11—1600 r/min (24 steps)
主轴内孔
Hole though spindle
52mm(80mm)
主轴孔锥度
Spindle taper
Morse No.6 (莫氏6号)
进给 Feed 进给数量 No. of feeds 64种(kinds)(for each)
公制螺纹Range of metric threads (kinds) (1-192mm)44种(44kinds)
英制螺纹 Range of inch threads(kinds) (1-24tpi)21种(21kinds)
模数螺纹 Rage of module threads(kinds) 0.25-48(模数39种)(Module 39 kinds)
径节螺纹 Rage of Diametral pitc threads (kinds) 1-96DP(37种)(37 kinds)
床尾 Tailstock 床尾主轴大行程
Max tailstock spindle travel
150mm
床尾主轴直径 Tailstock spindle diameter 75mm
床尾主轴孔锥度 Morse No.5 (莫氏5号)
主电机 Main motor 7.5KW(10HP)
包装外形尺寸
Picking dimensions
(L×M×H mm)
Overall dimensions for 750 2440X1150X1170 2440X1150X1700 2440X1190X1700 2440X1150X1900 2440X1150X1950
Overall dimensions for 1000 2650X1150X1700 2650X1150X1700 2650X1190X1700 2650X1150X1900 2650X1150X1950
Overall dimensions for 1500 3150X1150X1700 3150X1150X1700 3150X1190X1700 3150X1150X1900 3150X1150X1950
Overall dimensions for 2000 3610X1150X1700 3610X1150X1700 3610X1190X1700 3650X1150X1900 3650X1150X1950
Overall dimensions for 3000 4610X1150X1700 4610X1150X1700 4610X1190X1700 4650X1150X1900 4650X1150X1950
重量
Weight
(Kg)
Length 毛重 G.W.   净重 N.W.
Overall dimensions for 750 2700     2000 2700     2000 2860     2260 2900     2300 3000     2400
Overall dimensions for 1000 2800     2100 2700     2000 3050     2450 3060     2460 3200     2600
Overall dimensions for 1500 3050     2250 2700     2000 3240     2640 3250     2650 3400     2800
Overall dimensions for 2000 3300     2600 2700     2000 3480     2880 3480     2880 3500     3000
Overall dimensions for 3000 4000     3450 2700     2000 4287     3687 4300     3700 4500     3900
